DB59S024035-B3 - 直流无刷电机 | Nanotec
清除配置
激活配置
返回配置程序

DB59S024035-B3 –  直流无刷电机

Cadenas
配置

采用角式设计的直流无刷电机。配有两个轴端、编码器和刹车。

您可以对此商品进行其他配置。请单击下面的配置按钮开始。
AGV 用轮式驱动器 AGV 用轮式驱动器 (35)
适用于直流无刷电机和步进电机的变速箱 适用于直流无刷电机和步进电机的变速箱 (86)
用于 BLDC 电机和步进电机的编码器 用于 BLDC 电机和步进电机的编码器 (9)
适用于 BLDC 电机和步进电机的刹车 适用于 BLDC 电机和步进电机的刹车 (2)
轴修改 轴修改 (2)

技术数据

  • NEMA 23
  • 额定功率 84 W
  • 额定转矩
  • 额定电流 5 A
  • 额定转速 3500 rpm
  • 转子的转动惯量 75 gcm²
  • 线间电感 0.63 mH
  • 重量
  • 尺寸
  • 额定电压 24 V
  • 峰值转矩
  • 峰值电流 15 A
  • 转矩常数 4.5 Ncm/A
  • 线间电阻 0.57 Ohm
  • 机身长度“A”

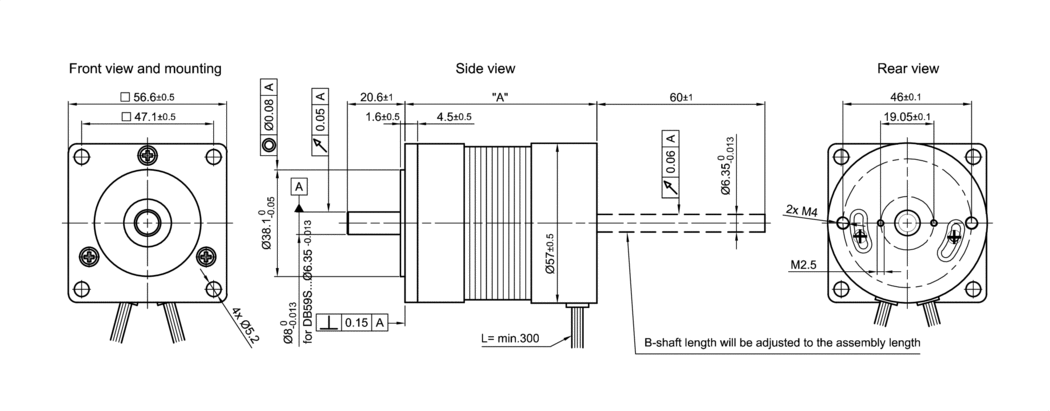

尺寸

DB59-B3
Creation in progress ...

速度推力曲线

Recommended load limit:
Maximum short-term static load that may be reached when the service life is taken into account.
Recommended load limit
Continuous duty region
转矩 [Nm]/{{ curve.comparePoint | number : 2 }}rpm 转速 [rpm]/{{ curve.comparePoint | number : 2 }}Nm
力 [N]/{{ curve.comparePoint | number : 2 }}mm/s 速度 [mm/s]/{{ curve.comparePoint | number : 2 }}N
Torque [Nm] at {{ curve.comparePoint | number : 2 }} rpm Speed [rpm] at {{ curve.comparePoint | number : 2 }} Nm



 {{ curve.calculateValueAtComparePoint(dataRow) }}
  • {{ attribute.label }}

下载

CAD
数据表
证书

配件

ZD-DF56 减震器

知识库

Brushless DC Motors | BLDC Motors from NANOTEC
直流无刷电机（简称为 BLDC 电机）——尽管名谓“直流”——实际上是一种三相电流同步电机：转子跟随旋转磁场运转，其运动与施加在绕组上的交流电压同步。 这种电机类型之所以通常被称为“无刷直流电机”是因为，在许多应用中，该电机可以替换有刷直流电机（有刷直流或换向器式电机）。在有刷直流电机中，施加直流电压后，电机中的机械逆变器（电刷）会产生与转速无关的交流电。
更多详情
