GPLL22-25 - 经济型行星变速箱 | Nanotec

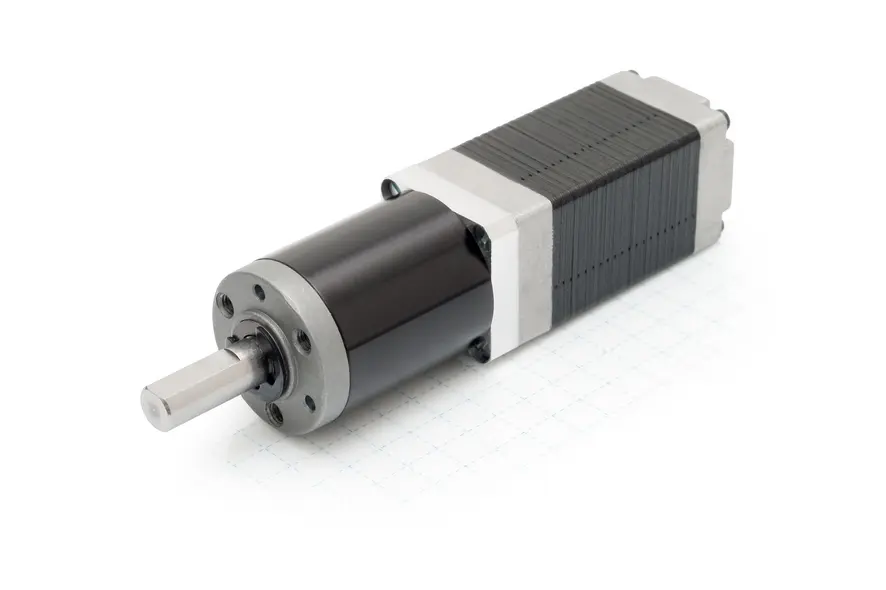

GPLL22-25 –  经济型行星变速箱

技术数据

  • 减速比 25.2
  • 最大输出转矩 0.9 Nm
  • 背隙 150 ´(弧分)
  • 法兰长度 L1
  • 寿命 1000 小时
  • 工作温度 -10 至 +80 °C
  • 允许的轴向轴负载 7 N
  • 额定输出转矩 0.3 Nm
  • 效率 70 %
  • 长度“L”
  • 重量
  • 适用电机尺寸 NEMA 8, NEMA 11
  • 最大输入转速 9000 rpm
  • 允许的径向轴负载 10 N

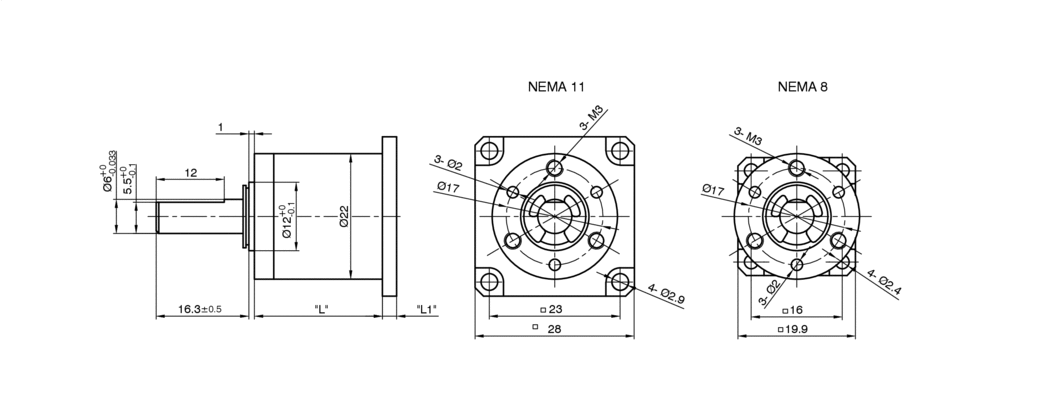

尺寸

GPLL22
