BRAKE-BWA-0,35-5 - 弹簧刹车 | Nanotec

BRAKE-BWA-0,35-5 –  弹簧刹车

技术数据

  • 工作电压(刹车) 24 V直流
  • 保持转矩 (刹车)
  • 尺寸
  • 轴毂 内径 Ø5,H8,M3X3 平头螺钉
  • 连接 线长 L=300mm
  • 开机时间 100 ms
  • 额定功率 5.9 W
  • 轴直径
  • 惯性矩 10 kg mm²
  • 紧固 3 个 M3 螺钉(BWA-0.35-5)
  • 关机时间 10 ms
  • 重量

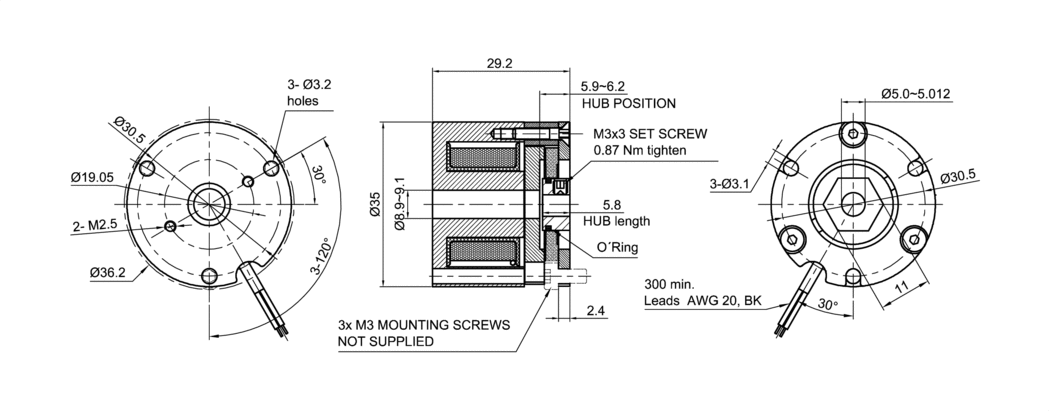

尺寸

BWA-0.35-5
