PD2-E –  带集成控制器/驱动器的步进电机 — NEMA 17 新建

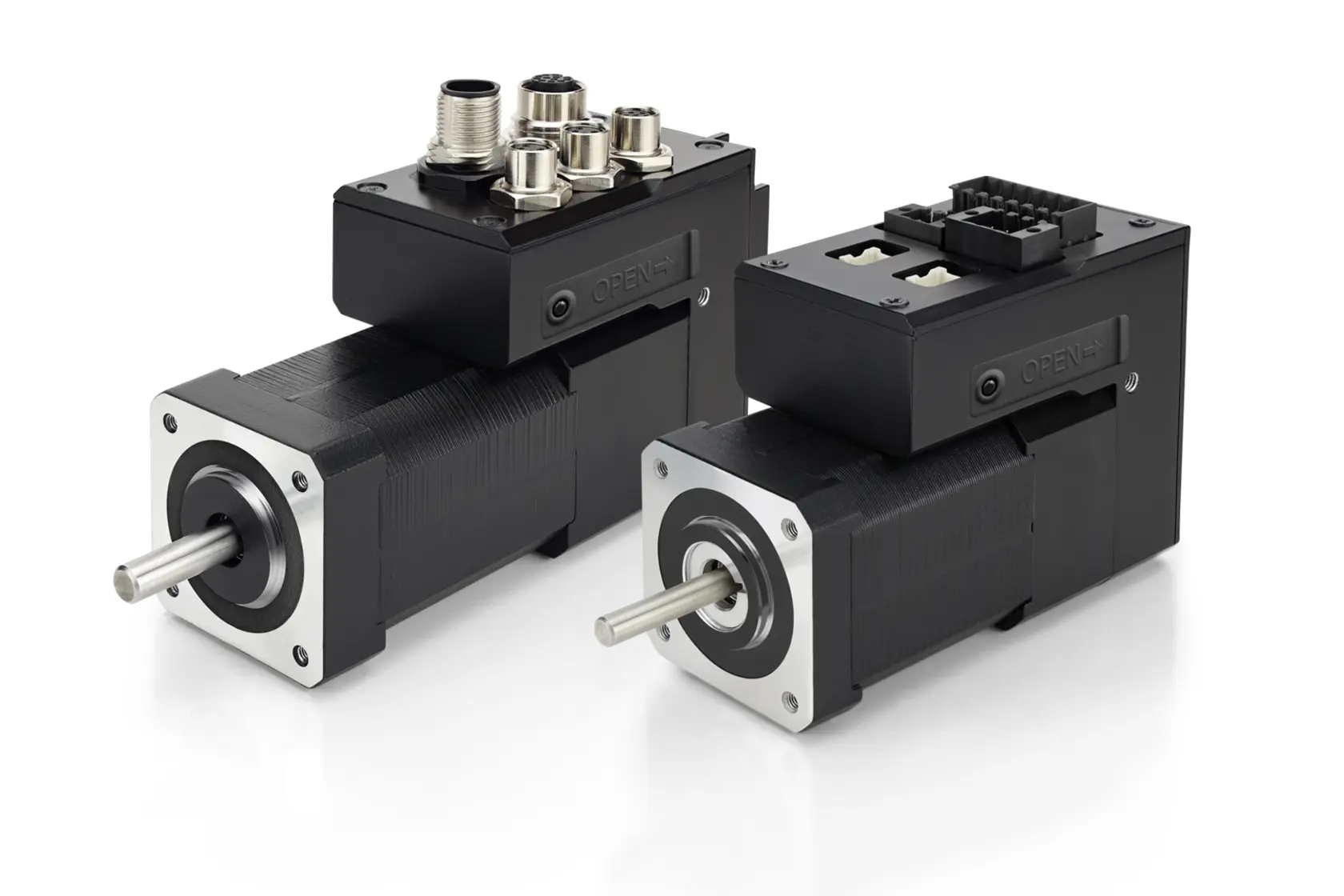

PD2-E integrated stepper motor with controller, NEMA 17

PD2‑E 专为高要求自动化与运动控制应用设计，将 NEMA17 步进电机与控制器 / 驱动器集成于紧凑机身内。高分辨率单圈、多圈绝对值编码器保障定位与控制精度；高达 80 Ncm 的保持转矩，使其可适配各类定位任务。

与上一代电机相比，PD2‑E 额定转矩最高提升 60% 。支持 IP30 或 IP65 防护等级，在恶劣工业环境中仍可稳定工作。

亮点

  • 保持转矩最高 80 Ncm
  • 内置 NanoJ 编程，支持独立运行
  • 实时触发式测头位置捕获
  • 具备峰值电流能力的磁场定向控制 (FOC)
  • 推挽式数字输入输出接口，附带抱闸输出
  • 多协议通信：CANopen, EtherCAT 和 Modbus RTU
  • 简化系统复杂度，降低集成工作量

典型行业与应用场景
拾取放置系统、实验室自动化、半导体及电子制造、装配自动化、医疗技术
