CLC –  Servo drives 新建

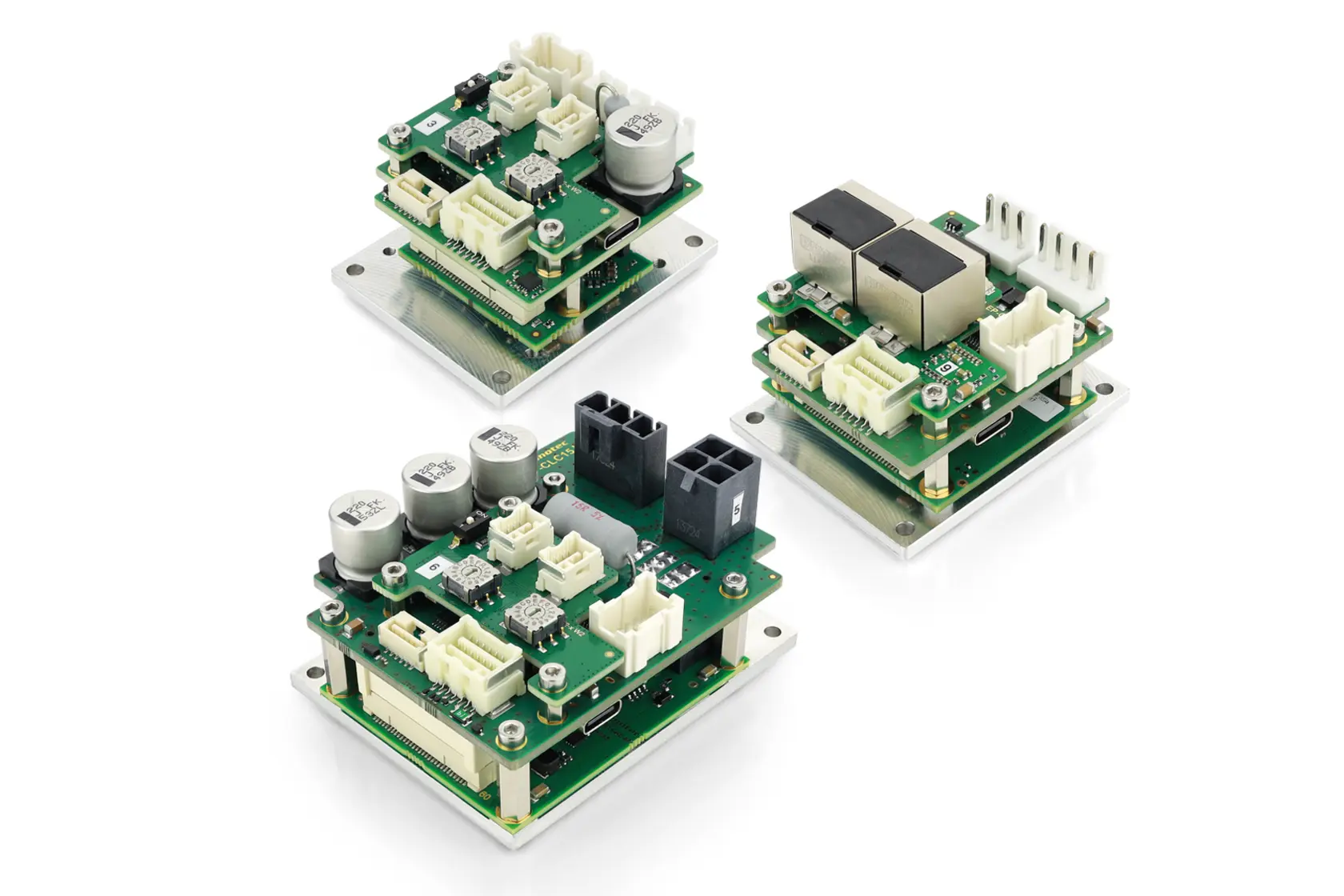

CLC servo drives from Nanotec: motor controllers for steppers and BLDCs with EtherCAT, CANopen, and Modbus RTU support.

The CLC series from Nanotec comprises a range of compact, open-frame servo drives designed for easy integration into industrial automation systems and custom control electronics. Available in three power classes – CLC3 (3 A), CLC6 (6 A), and CLC15 (15 A) – these motor controllers/drives support both BLDC and stepper motors, making them ideal for OEM applications, robotics, machine tools, and embedded motion control systems.

With multiple fieldbus options including CANopen, EtherCAT, and Modbus RTU, these servo drives offer exceptional connectivity, control, and performance in a space-saving design. Field-Oriented Control (FOC) ensures smooth, efficient, and precise motor operation.

Configuration, tuning, and diagnostics are facilitated by the free Plug & Drive Studio software.

Key advantages

  • Overtemperature shutdown (>75 °C), overcurrent/overvoltage protection, and ESD-safe design
  • Flexible setpoint control via analog input, step & direction, or NanoJ program
  • Built-in programming environment enables stand-alone operation without external PLC
  • Sensorless closed-loop control (coming soon) for accurate speed and torque control
  • Brake output for external holding brake
  • Multi-feedback option: SSI, incremental, Hall sensors
  • CiA 402-compliant motion profiles: Profile Position, Velocity, Torque modes
  • Integrated digital I/Os for flexible system interaction and configurability

Applications
Laboratory automation, medical devices, packaging machines, winders, SMD and pick-and-place machines, material handling systems, compact robotic units and servo axes, precision axis control in custom machinery
