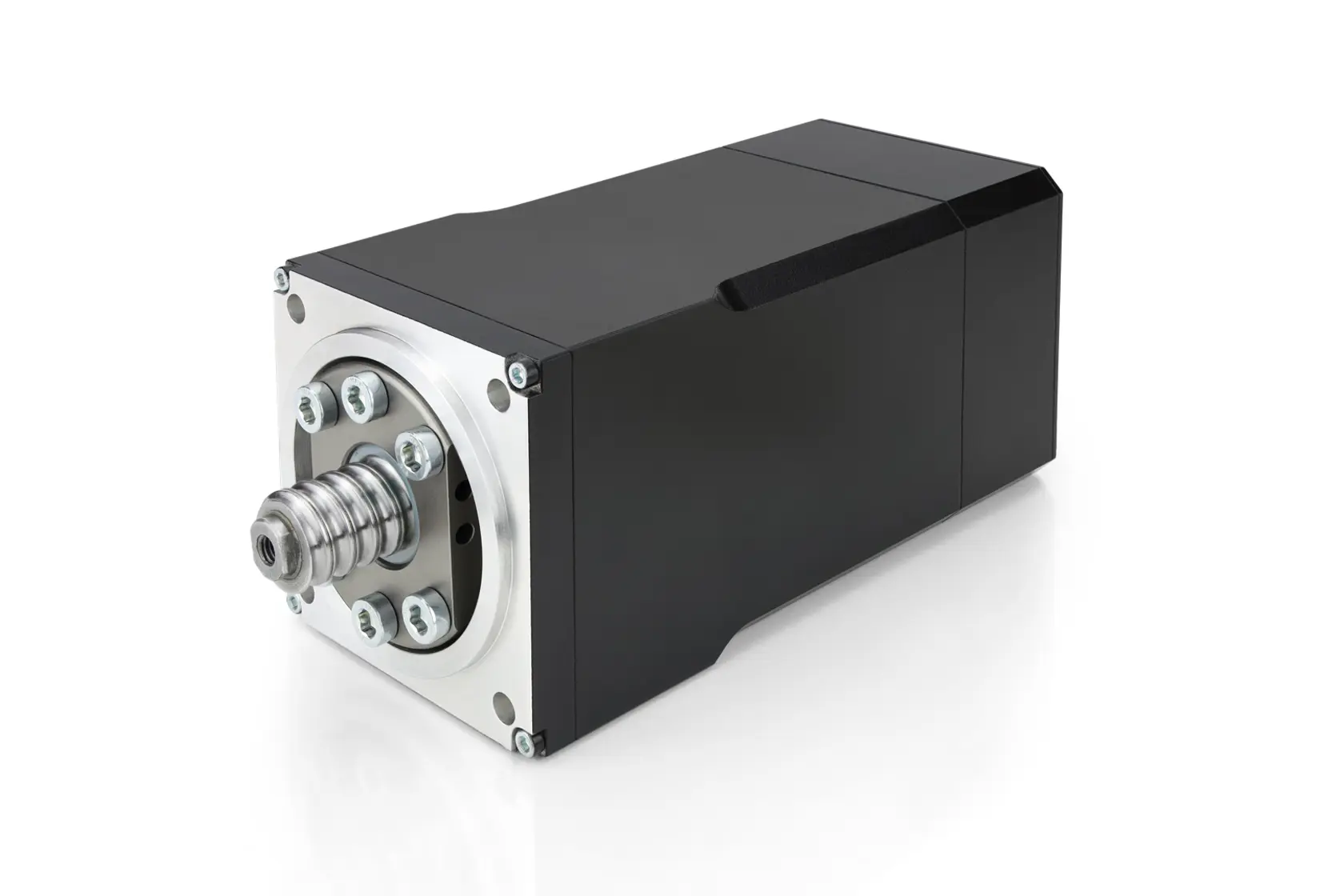

LBA80 – BLDC 线性执行器 – 80 mm 新建

LBA80 是一款紧凑型 BLDC 线性执行器，配备 80mm 法兰，适用于动态且高精度的直线定位任务。

其将高性能 BLDC 电机与精密轧制滚珠丝杠集于一体。得益于其短型结构，LBA80特别适用于空间受限的应用。

内置编码器确保了高重复精度。提供两种版本：带霍尔传感器的增量式版本（4,096 CPR），或带 SSI 接口的 17 位绝对式版本。

可根据需求提供集成式直线导轨 (LBGA80)，并可选择在导轨上额外安装直线 SSI 编码器。

亮点

典型行业和应用
格式调整单元、拾放系统、包装机械、实验室与医疗自动化、半导体及电子装配

LBA80 商品
