DKA43M048050 - 无框 BLDC 电机 | Nanotec
清除配置
激活配置
返回配置程序

DKA43M048050 –  无框 BLDC 电机

Different sized DKA Frameless BLDC motors
Cadenas

技术数据

  • NEMA
  • 额定功率 78 W
  • 额定转矩
  • 额定电流 2.4 A
  • 额定转速 5000 rpm
  • 转子的转动惯量 2.7 gcm²
  • 线间电感 1.8 mH
  • 重量
  • 尺寸
  • 额定电压 48 V
  • 峰值转矩
  • 峰值电流 6 A
  • 转矩常数 81 Ncm/A
  • 线间电阻 2.8 Ohm
  • 机身长度“A”

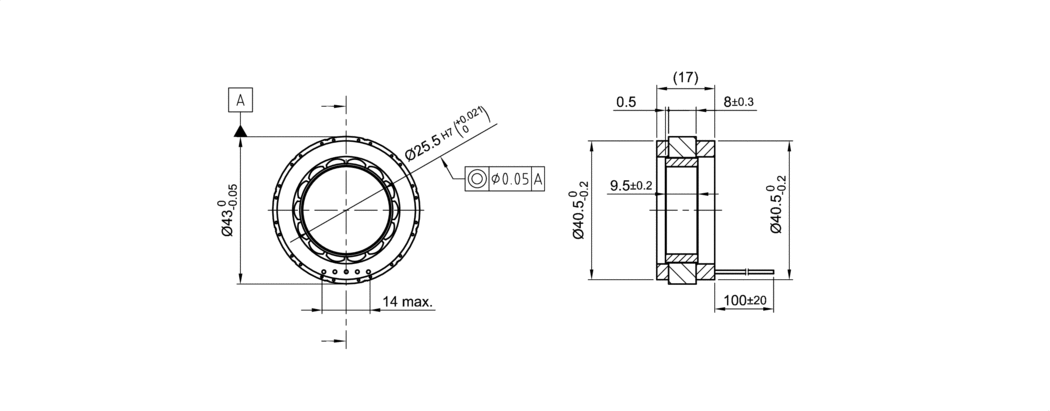

尺寸

DKA43M
Creation in progress ...

速度推力曲线

Recommended load limit:
Maximum short-term static load that may be reached when the service life is taken into account.
Recommended load limit
Continuous duty region
转矩 [Nm]/{{ curve.comparePoint | number : 2 }}rpm 转速 [rpm]/{{ curve.comparePoint | number : 2 }}Nm
力 [N]/{{ curve.comparePoint | number : 2 }}mm/s 速度 [mm/s]/{{ curve.comparePoint | number : 2 }}N
Torque [Nm] at {{ curve.comparePoint | number : 2 }} rpm Speed [rpm] at {{ curve.comparePoint | number : 2 }} Nm



 {{ curve.calculateValueAtComparePoint(dataRow) }}
  • {{ attribute.label }}

下载

CAD
数据表
手册
证书

知识库

Brushless DC Motors | BLDC Motors from NANOTEC
直流无刷电机（简称为 BLDC 电机）——尽管名谓“直流”——实际上是一种三相电流同步电机：转子跟随旋转磁场运转，其运动与施加在绕组上的交流电压同步。 这种电机类型之所以通常被称为“无刷直流电机”是因为，在许多应用中，该电机可以替换有刷直流电机（有刷直流或换向器式电机）。在有刷直流电机中，施加直流电压后，电机中的机械逆变器（电刷）会产生与转速无关的交流电。
更多详情
