ASA8618L95-E3 - IP65 步进电机 – NEMA 34 | Nanotec
清除配置
激活配置
返回配置程序

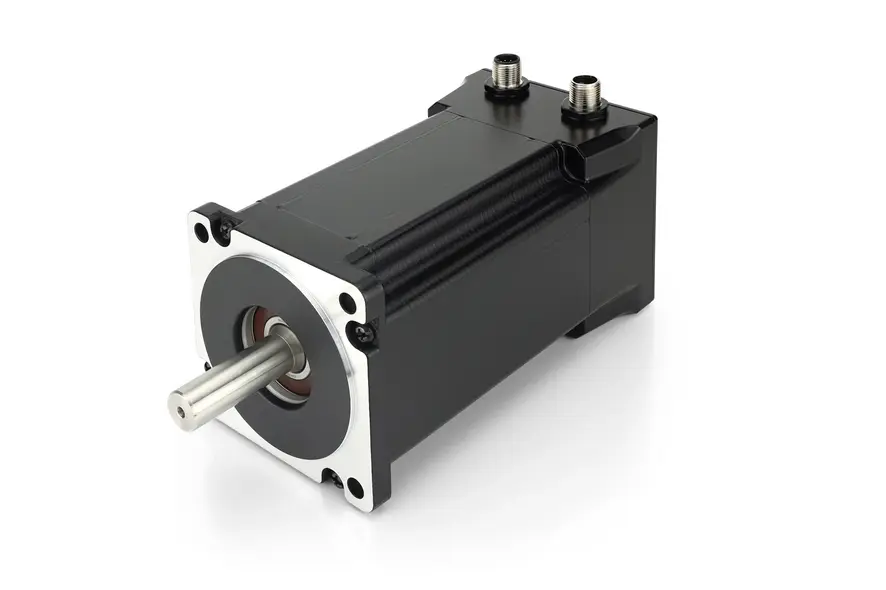

ASA8618L95-E3 –  IP65 步进电机 – NEMA 34

Cadenas
配置
您可以对此商品进行其他配置。请单击下面的配置按钮开始。
适用于直流无刷电机和步进电机的变速箱 适用于直流无刷电机和步进电机的变速箱 (49)
适用于 BLDC 电机和步进电机的刹车 适用于 BLDC 电机和步进电机的刹车 (1)
轴修改 轴修改 (2)

技术数据

  • 尺寸
  • IP 保护 (出轴端除外) IP65
  • 保持转矩
  • 相电感 2.4 mH
  • 机身长度“A”
  • 带刹车
  • 编码器信号类型 增量
  • 工作电压（编码器） 5 V
  • NEMA 34
  • 相电流 9.5 A
  • 相电阻 0.26 Ohm
  • 转子的转动惯量 3000 gcm²
  • 重量
  • 带编码器
  • 编码器分辨率 4096 CPR

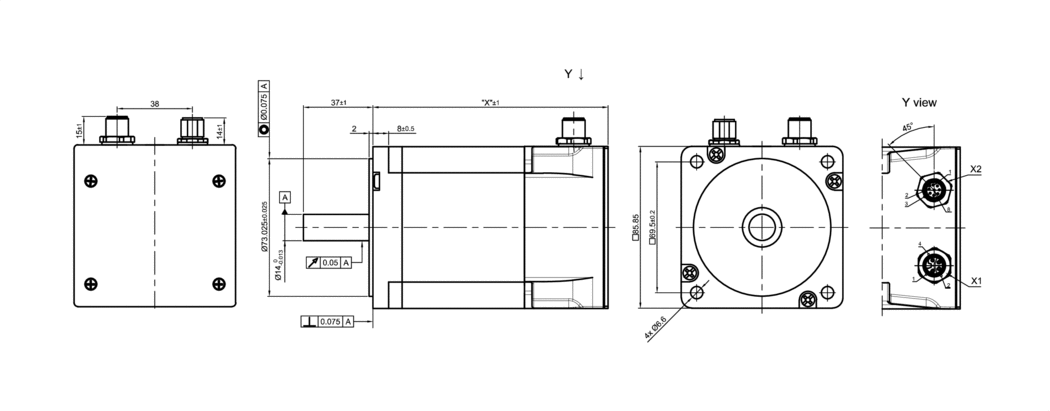

尺寸

Creation in progress ...

力矩曲线

Recommended load limit:
Maximum short-term static load that may be reached when the service life is taken into account.
Recommended load limit
Continuous duty region
转矩 [Nm]/{{ curve.comparePoint | number : 2 }}rpm 转速 [rpm]/{{ curve.comparePoint | number : 2 }}Nm
力 [N]/{{ curve.comparePoint | number : 2 }}mm/s 速度 [mm/s]/{{ curve.comparePoint | number : 2 }}N
Torque [Nm] at {{ curve.comparePoint | number : 2 }} rpm Speed [rpm] at {{ curve.comparePoint | number : 2 }} Nm



 {{ curve.calculateValueAtComparePoint(dataRow) }}
  • {{ attribute.label }}

下载

CAD
数据表
证书

配件

ZK-M12-4-2M-1-LFF 电机电缆直线型，2 m
ZK-M12-4-2M-2-LFF 电机电缆弯角型，2 m
ZK-M12-4-5M-1-LFF 电机电缆直线型，5 m
ZK-M12-4-5M-2-LFF 电机电缆弯角型，5 m
ZK-M12-8-2M-1-AFF 编码器线缆 直线型，2 m
ZK-M12-8-2M-2-AFF 编码器线缆 弯角型，2 m
ZK-M12-8-5M-1-AFF 编码器线缆 直线型，5 m
ZK-M12-8-5M-2-AFF 编码器线缆弯角型，5 m
ZK-M12-8-2M-2-PADP 编码器线缆 弯角型，2 m
