LBA60LDR1250-E3-55 - BLDC 线性执行器 – 60 MM | Nanotec
清除配置
激活配置
返回配置程序

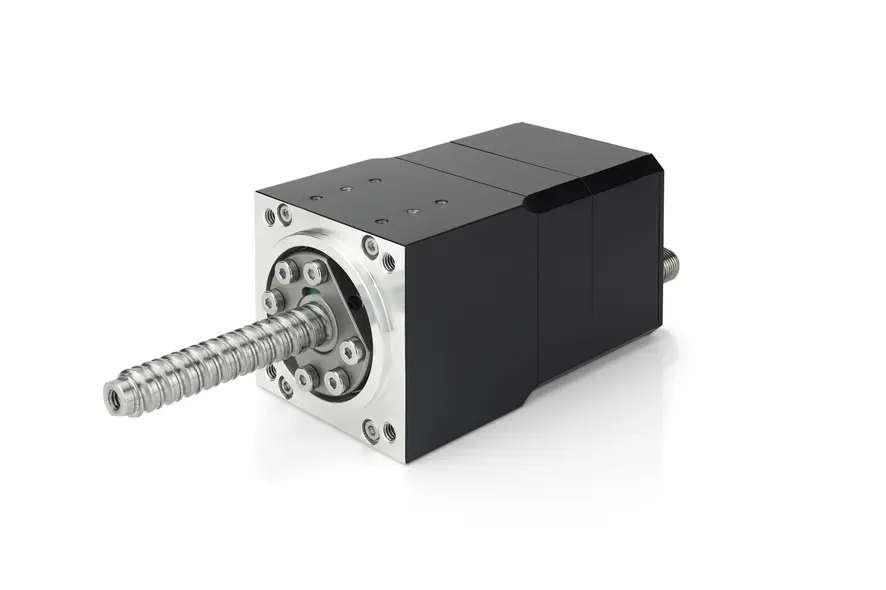

LBA60LDR1250-E3-55 –  BLDC 线性执行器 – 60 MM

Cadenas

技术数据

  • 尺寸
  • 额定电流 6.2 A
  • 额定力 500 N
  • 速度 100 mm/s
  • 导程
  • 编码器分辨率 4096 CPR
  • 编码器类型 增量
  • 最大轴向间隙
  • IP 保护 IP54
  • 重量
  • 额定电压 48 V
  • 峰值电流 17.7 A
  • 峰值力 1500 N
  • Max. Speed 292 mm/s
  • 工作电压（编码器） 4.50 – 5.50 V
  • 编码器分辨率 SSI -
  • 行程长度“X”
  • 机身长度“A”
  • 带刹车

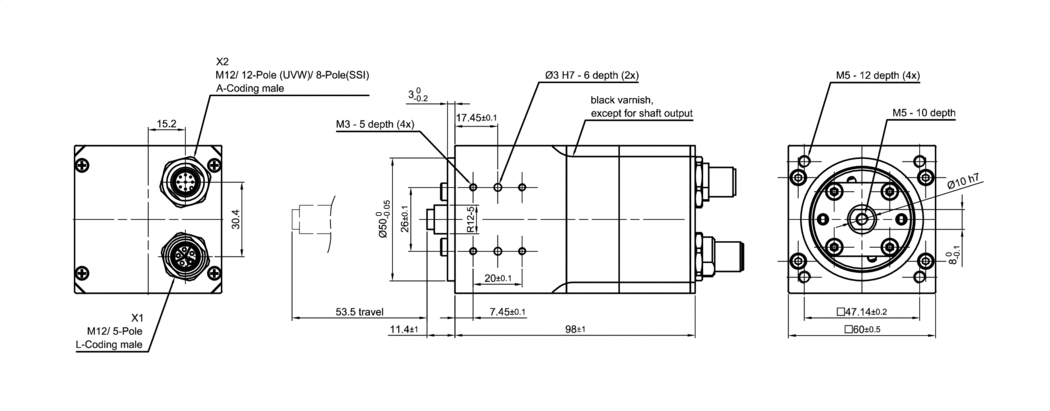

尺寸

Creation in progress ...

下载

CAD
数据表
证书

配件

ZK-M12-4-5M-2-LFF 电源线 弯角型 5m
ZK-M12-4-5M-1-LFF 电源线 直线型 5m
ZK-M12-4-2M-2-LFF 电源线 弯角型 2m
ZK-M12-4-2M-1-LFF 电源线 直线型 2m
ZK-M12-12-2M-2-PADP 编码器线缆 弯角型 2m
ZK-M12-12-2M-1-AFF 编码器线缆 直线型 2m
