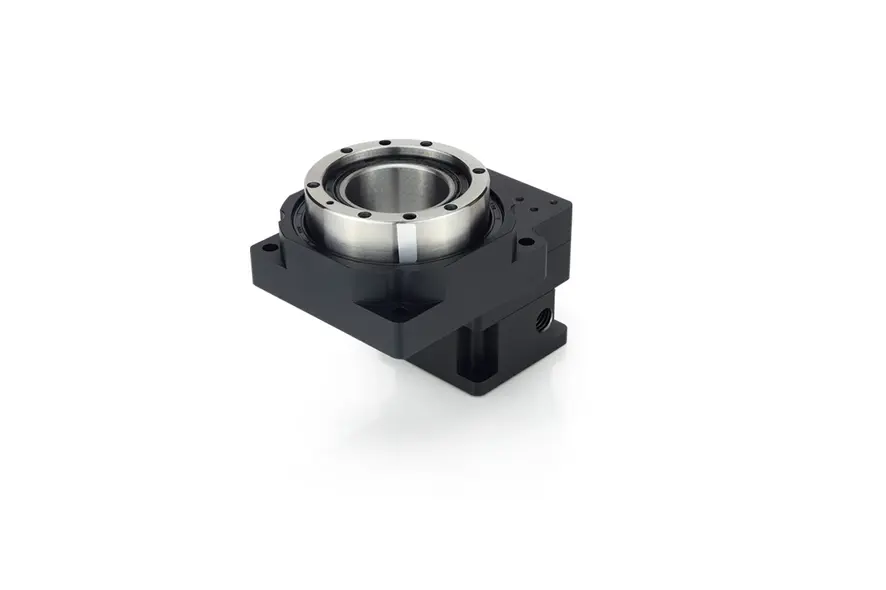

HRTA-601-010 - 中空旋转平台 | Nanotec

HRTA-601-010 –  中空旋转平台

技术数据

  • 适用电机尺寸 NEMA 17
  • 效率 98 %
  • 额定输出转矩 3.5 Nm
  • 重复定位精度 1±0.5 ´(arc minutes)
  • 输出工作台端面跳动
  • 减速比 10
  • 惯性矩 1000 kg mm²
  • 工作温度 -25 °C – 90 °C
  • 法兰长度 L1
  • 允许的轴向轴负载 250 N
  • 尺寸
  • 类型 加强轴承
  • 背隙 1 ´(弧分)
  • 最大输出转矩 3.5 Nm
  • 最大倾斜力矩
  • 输出工作台内(外)径跳动
  • 最大输入转速 5000 rpm
  • 寿命 20000 小时
  • 长度“L”
  • 重量
  • IP 保护 变速箱 IP50

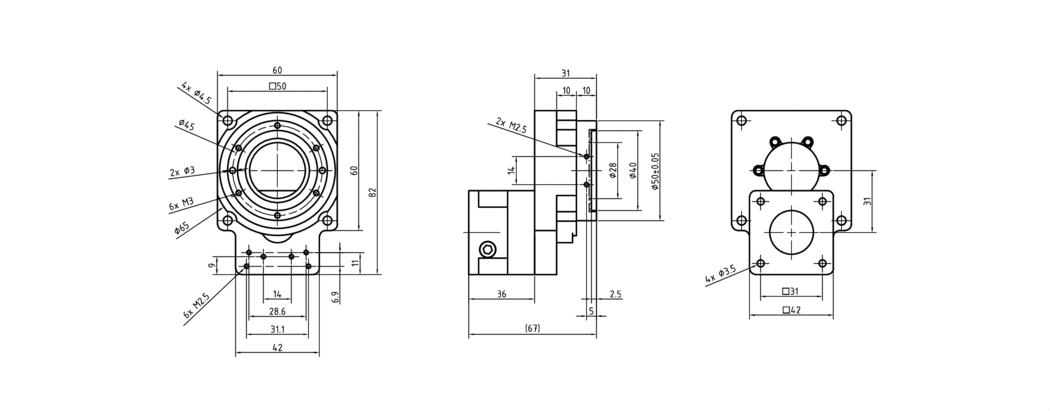

尺寸
