NMM1-SSI-V06-05-CR - 多圈编码器 | Nanotec

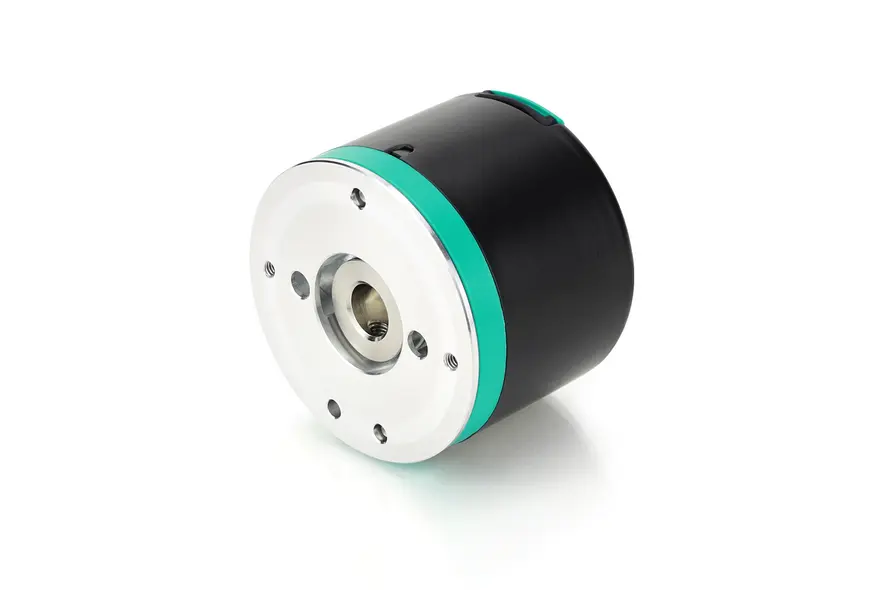

NMM1-SSI-V06-05-CR –  多圈编码器

技术数据

  • 指引
  • 编码器信号类型 SSI
  • 工作电压(编码器) 4.75 – 15.00 V
  • 输出信号 SSI
  • 工作温度 -40 °C – 105 °C
  • 湿度 最大 98%(非冷凝)
  • 线性驱动芯片
  • 轴直径
  • 编码器分辨率 SSI 17 位单圈绝对值 / 16 位多圈绝对值
  • 极限转速 12000 RPM
  • 储存温度 -40 °C – 105 °C

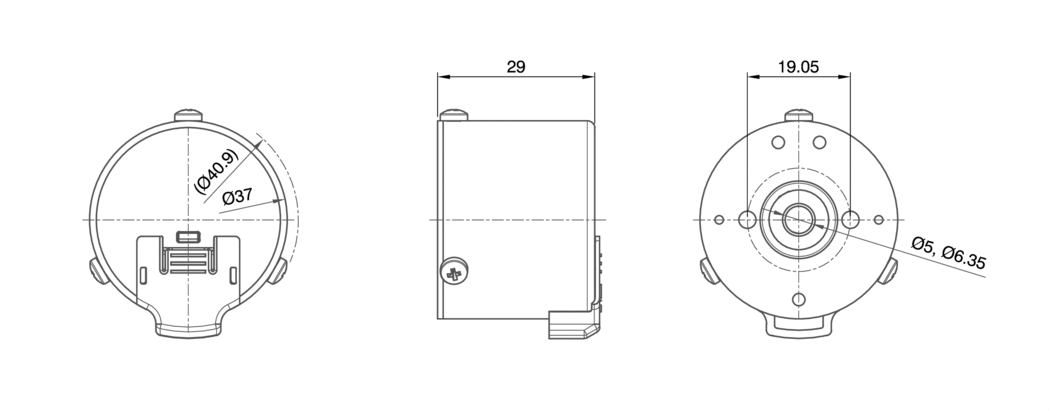

尺寸

Creation in progress ...

配件

ZK-JGH-8-500-S 编码器线缆 NMM1 0.5m
