CM-CPB3-44-0005-1 - 4 轴控制器/驱动器 | Nanotec

CM-CPB3-44-0005-1 –  4 轴控制器/驱动器

下面的技术数据指的是每个轴。

技术数据

  • 接口 Micro USB, USB
  • 工作电压 12 V直流 – 57.6 V直流
  • 峰值电流 (RMS) 9 A
  • 数字输入端数量
  • 模拟输入端数量
  • 数字输出
  • 编码器输入
  • 刹车输出
  • 温度范围 -10 °C – 40 °C
  • 现场总线 EtherCAT
  • 额定电流 (RMS) 3 A
  • 配套电机 直流无刷电机, 步进电机
  • 数字输入的类型 5 V
  • 模拟输入的类型 0…10 V; 10 Bit
  • 数字输出的类型 open-drain (max. 60V/1A)
  • 编码器信号类型 增量, SSI
  • 重量

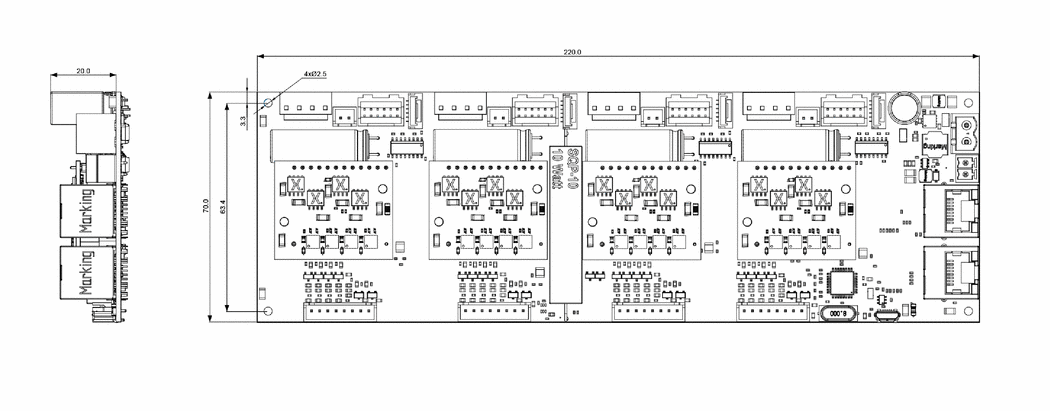

尺寸

Creation in progress ...

配件

ZK-XHP2-500-S Brake cable, 0.5m
ZK-GHR6-500-S 编码器线缆 SSI 0,5m
ZK-WEDL-500-S-PADP 编码器线缆 WEDL 0.5m
ZK-NTO3-10-500-PADP 编码器线缆 NTO3 0.5 m
ZK-NTO3-10-1000-PADP 编码器线缆 NTO3 1m
ZK-NOE-10-500-S-PADP 编码器线缆 NOE 0.5m
ZK-PADP-12-500-S Encoder cable contr., 0.5m
ZK-XHP-8-500-S IO Cable 0.5m
ZK-MICROUSB MicroUSB 数据线 1.5m
ZCWE-RM5-2  * Connector power
ZCPHOF-MC1,5-2  * Connector logic
ZK-VHR-4-500 电机电缆 0.5m
* CM-CPB3-44-0005-1 发货包装内包含以上配件.
