AS2818L1504-E - 带接头的 IP65 步进电机 - NEMA 11 | Nanotec
清除配置
激活配置
返回配置程序

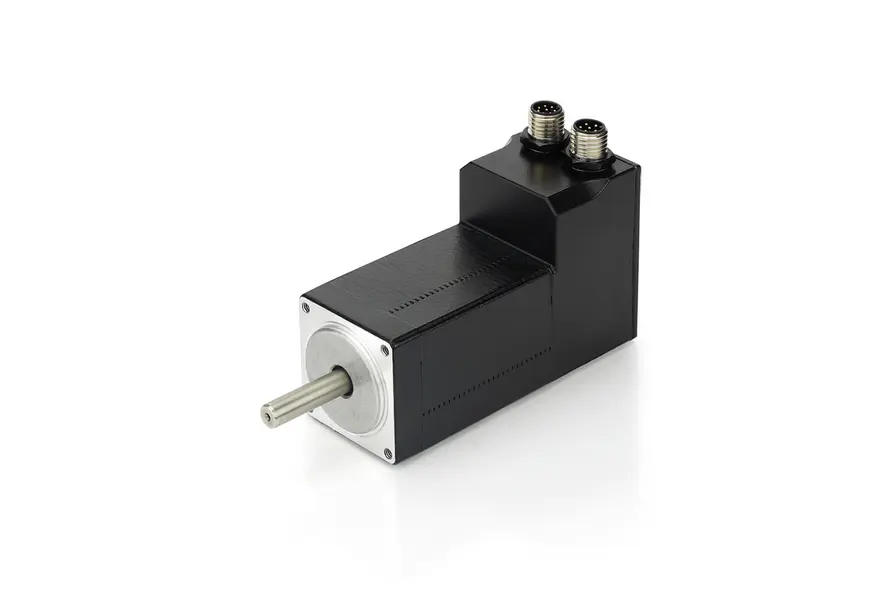

AS2818L1504-E –  带接头的 IP65 步进电机 - NEMA 11

Cadenas
配置
您可以对此商品进行其他配置。请单击下面的配置按钮开始。
适用于直流无刷电机和步进电机的变速箱 适用于直流无刷电机和步进电机的变速箱 (6)
轴修改 轴修改 (1)

技术数据

  • 尺寸
  • IP 保护 (出轴端除外) IP65
  • 保持转矩
  • 相电感 1.9 mH
  • 机身长度“A”
  • 带刹车
  • 编码器类型 增量
  • 工作电压（编码器） 5 V
  • NEMA 11
  • 相电流 1.5 A
  • 相电阻 1.9 Ohm
  • 转子的转动惯量 18 gcm²
  • 重量
  • 带编码器
  • 编码器分辨率 4096 CPR

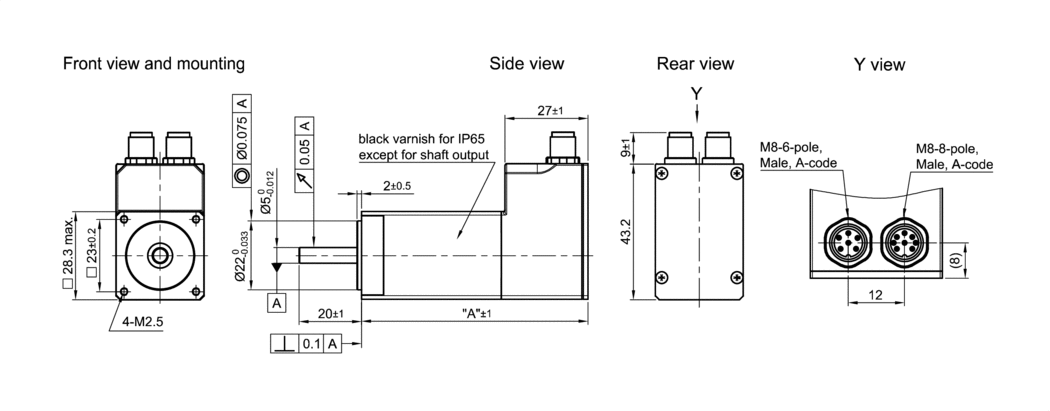

尺寸

AS2818-E
Creation in progress ...

力矩曲线

Recommended load limit:
Maximum short-term static load that may be reached when the service life is taken into account.
Recommended load limit
Continuous duty region
转矩 [Nm]/{{ curve.comparePoint | number : 2 }}rpm 转速 [rpm]/{{ curve.comparePoint | number : 2 }}Nm
力 [N]/{{ curve.comparePoint | number : 2 }}mm/s 速度 [mm/s]/{{ curve.comparePoint | number : 2 }}N
Torque [Nm] at {{ curve.comparePoint | number : 2 }} rpm Speed [rpm] at {{ curve.comparePoint | number : 2 }} Nm



 {{ curve.calculateValueAtComparePoint(dataRow) }}
  • {{ attribute.label }}

下载

CAD
数据表
证书

配件

ZK-M8-6-2M-1-AFF 电机电缆直线型 2m
ZK-M8-8-2M-1-PUR-S 编码器线缆 直线型 2m
